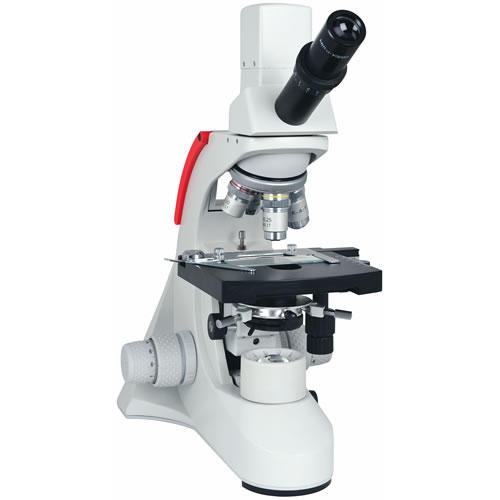

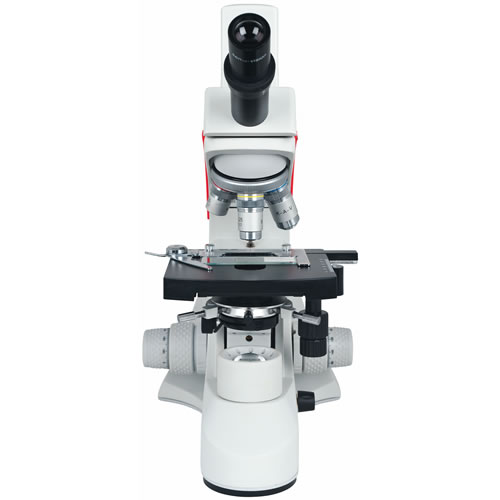

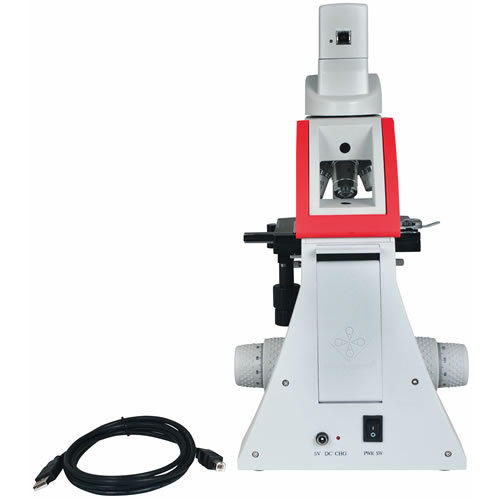

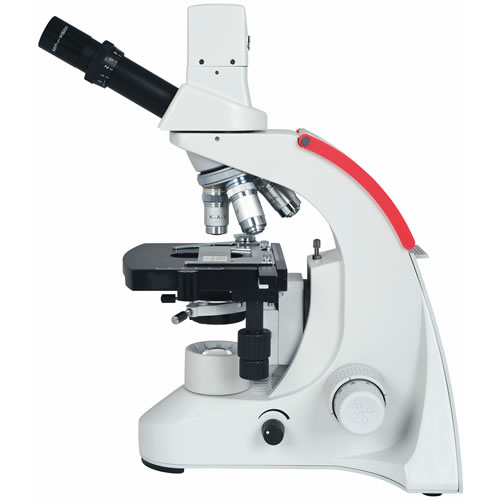

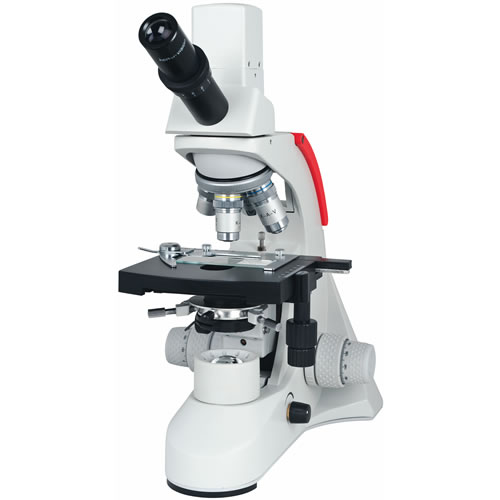

45 degree angle Monocular with built-in USB 3.2MP camera
Eyepiece:
10x Widefield with Pointer
Objective Lens:
4x, 10x, 40xR, 100xR DIN
100xR - Oil Immersion
Focus:
Separate Coaxial Coarse and Fine
Mechanical Stage:
Coaxial Low Position
Mechanical X-Y
Light Source:
Ken-A-Vision® Cool Lighting
Variable Light Control:
Yes - Rheostat
Light Control:
Abbe NA 1.25 Condenser
Connection:
USB 2.0
Resolution:
1920 x 1080
Frame Rate:
Up to 30 Frames Per Second
Software:
Applied Vision™ Software
The Digital Comprehensive Scope 2 is a very professional instrument, which will produce digital images for instant display of a specimen to a computer screen, or audio/visual projector. These same high resolution images can be incorporated into papers, reports, or tests. The unit comes with Applied Vision™ Software (PC) which allows the capture of single images, time lapse sequences and movies, or digital movies for recording. This microscope has a modern, modular design on a very stable base. The arm of the microscope includes a built in handle for ease of carrying, and an integrated storage system for retaining items with the unit.
Features:
3.2 Megapixel CMOS Camera: Microscope and Camera one unit
Resolution: Full Screen Imaging - HD 1080P
USB 2.0 Connection: Utilizes high speed connection
USB 1.1 Compatible: Back compatibility standard
Applied Vision™ Software
Abbe Condensor: Includes iris diaphragm
Stage: Mechanical X-Y; substage knobs
Achromat Objectives: 4x, 10x, 40xR, 100xR DIN
Dimmer (Rheostat) Switch: Easy adjustment of transmitted light
Reverse Nosepiece: Ease of slide insertion and manipulation
Coaxial Focusing Knob: Separate coarse and fine adjusting
Carrying Handle
Storage Door: Retaining items with unit
Ken-A-Vision® Cool Lighting: Patented LED bright white light, long bulb life
